Westinhouse Airbrake Section

Below are parts catalogs for certain Westinghouse air brake components. The parts catalogs are provided as a public service. The Following

  1. Steam Compressor Governors- Type SD (Double Top) Part Catalog No. 3205-2 Febreuary, 1925

  2. 8 1/2 Cross Compound Air Compressors Part Catalog No. 3204-1 September, 1924

  3. S-6 Independent Brake Valve Part Catalog No. 3207-3 September 1922

  4. H-6 Automatic Brake Valve Part Catalog No. 3208-3 December 1923

  5. No. 6 Distributing Valve Part Catalog No. 3212-2 June, 1925

  6. More to Follow

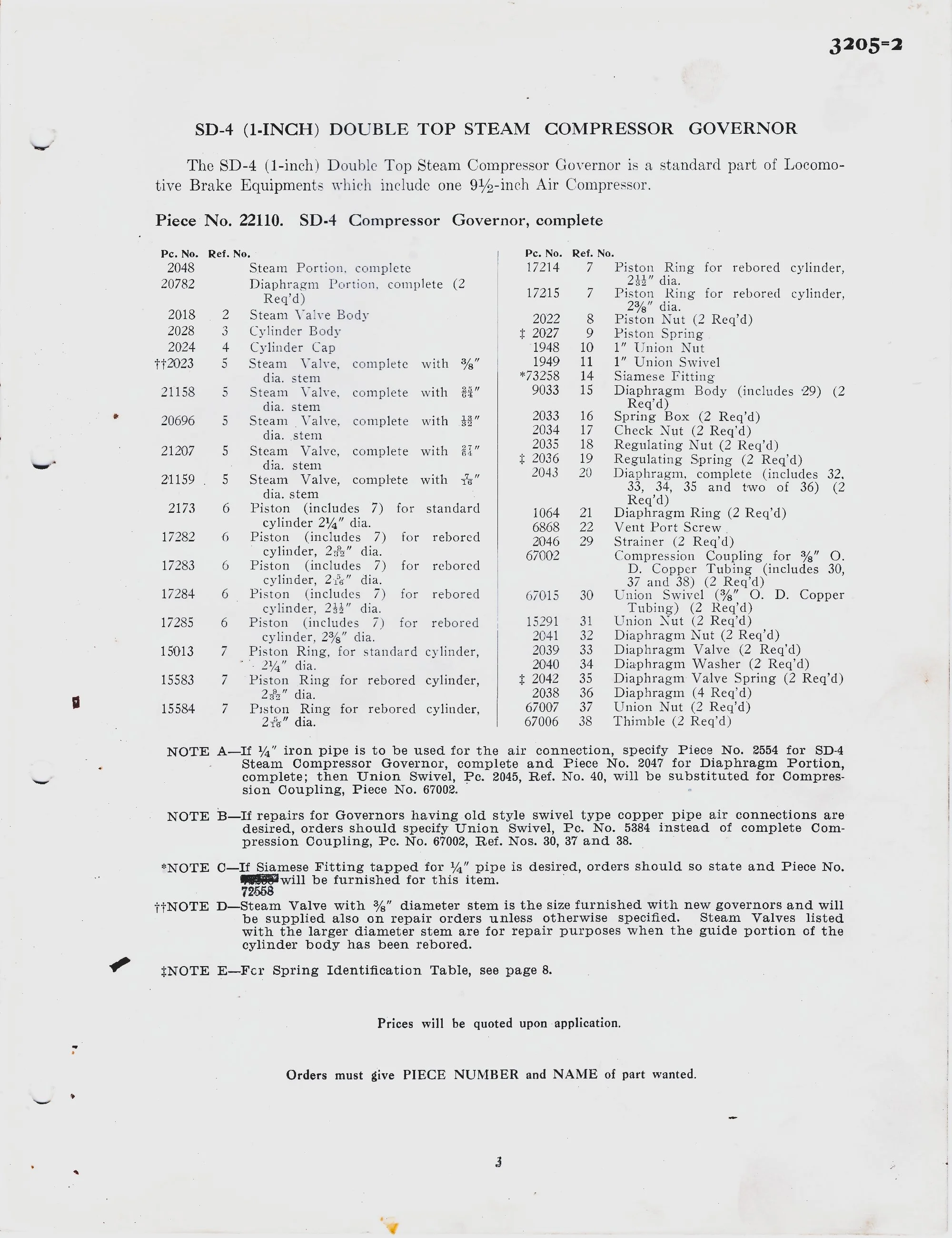

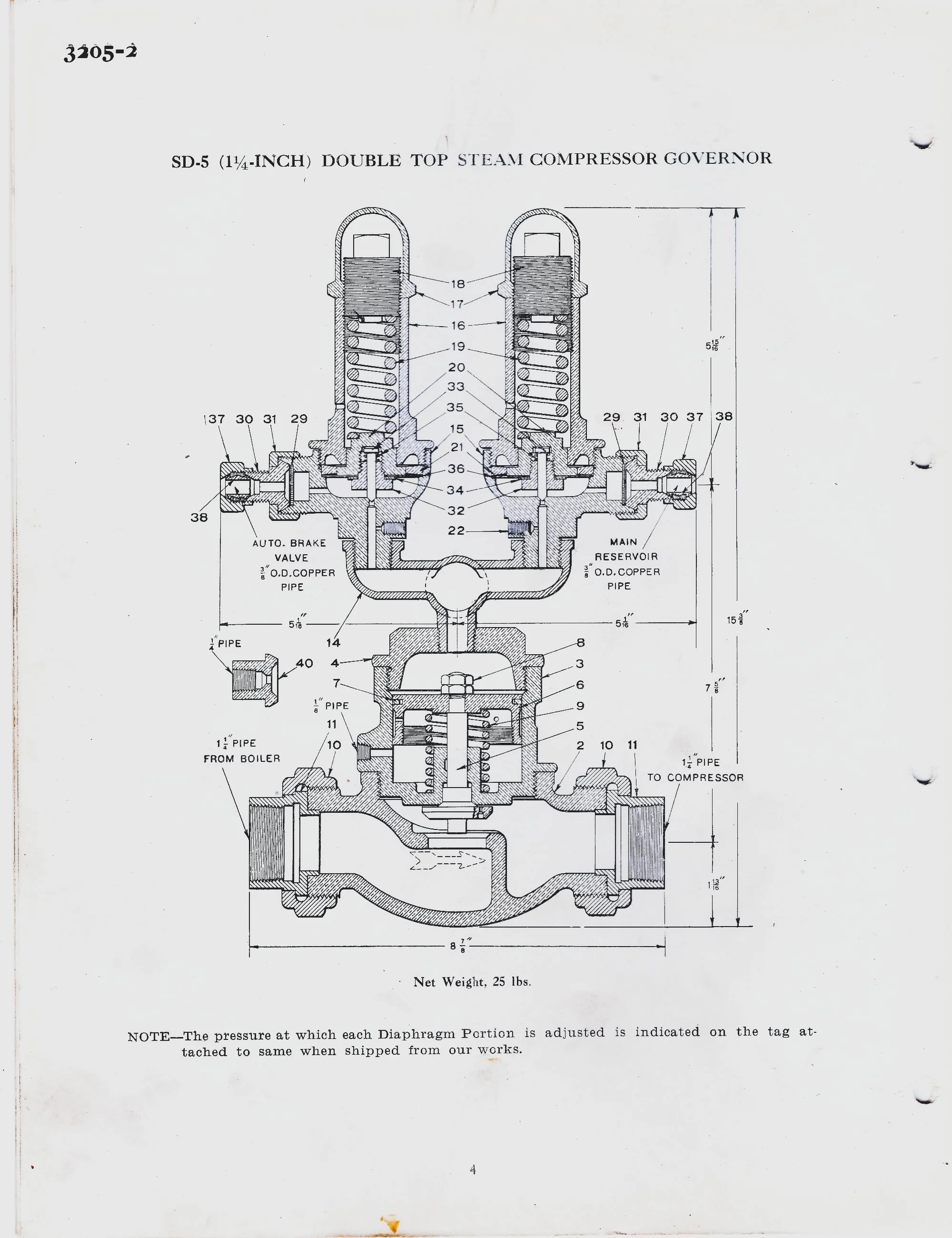

Steam Compressor Governors- Type SD

(Double Top)

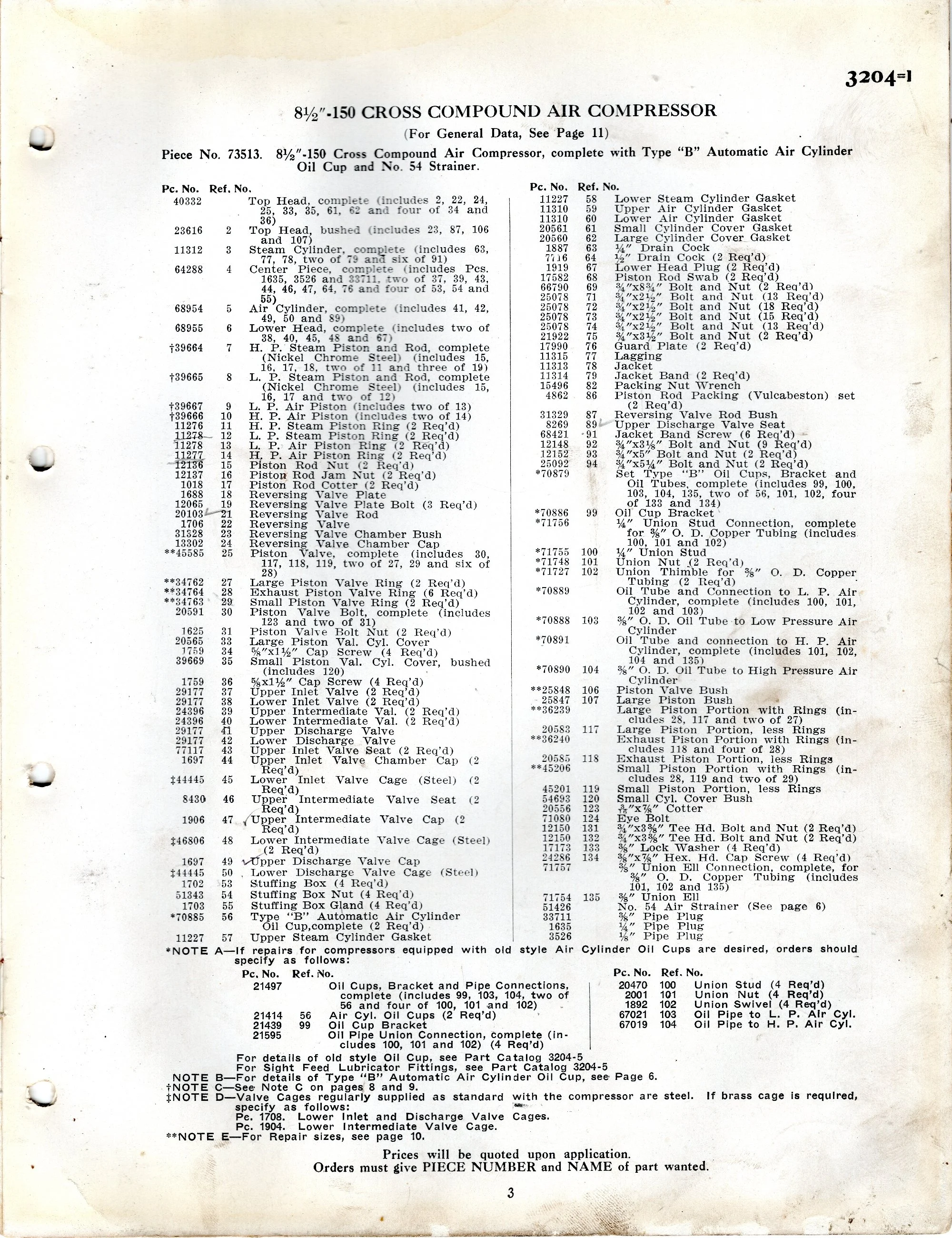

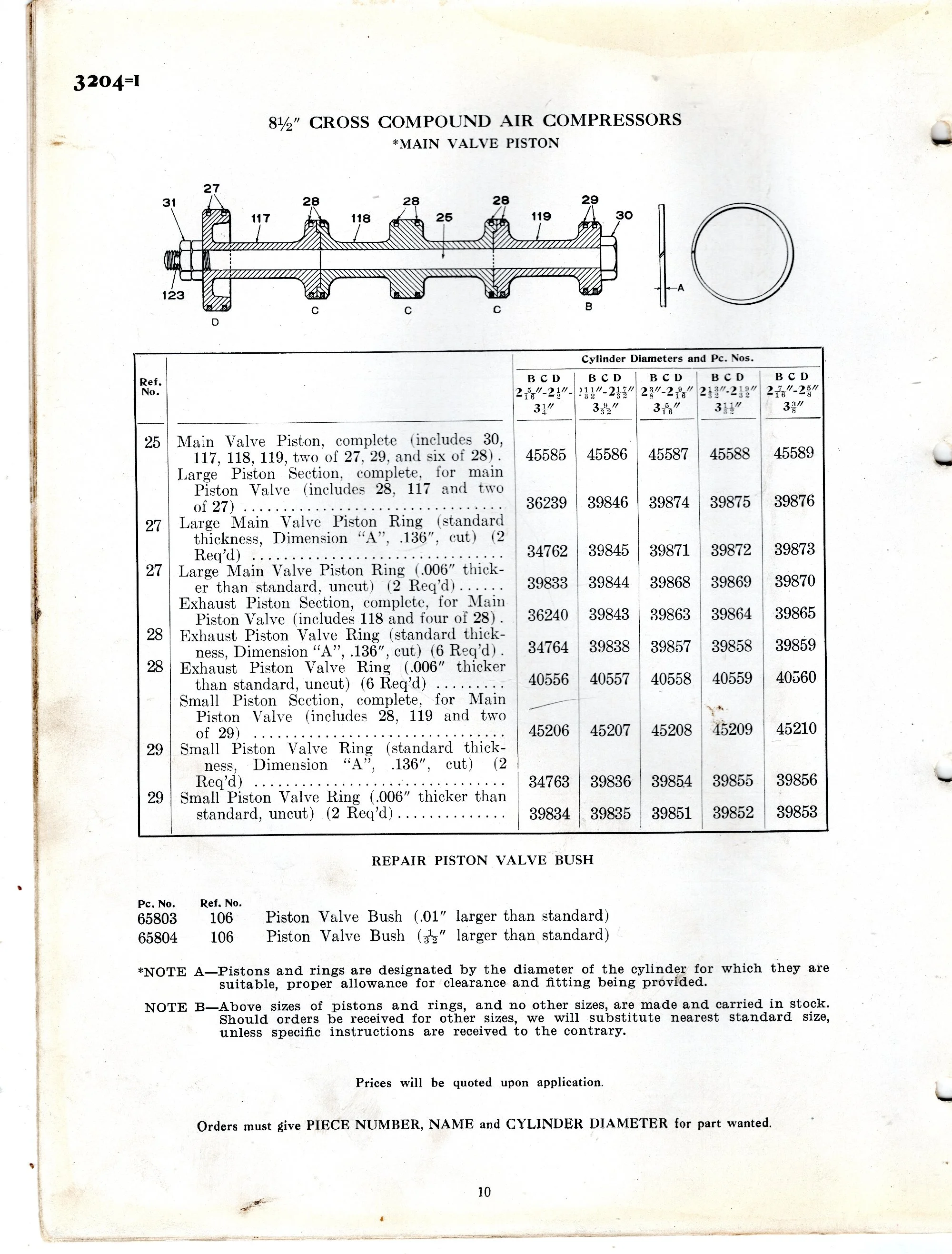

8 1/2 Cross Compound Air Compressors

Part Catalog No. 3204-1 September, 1924

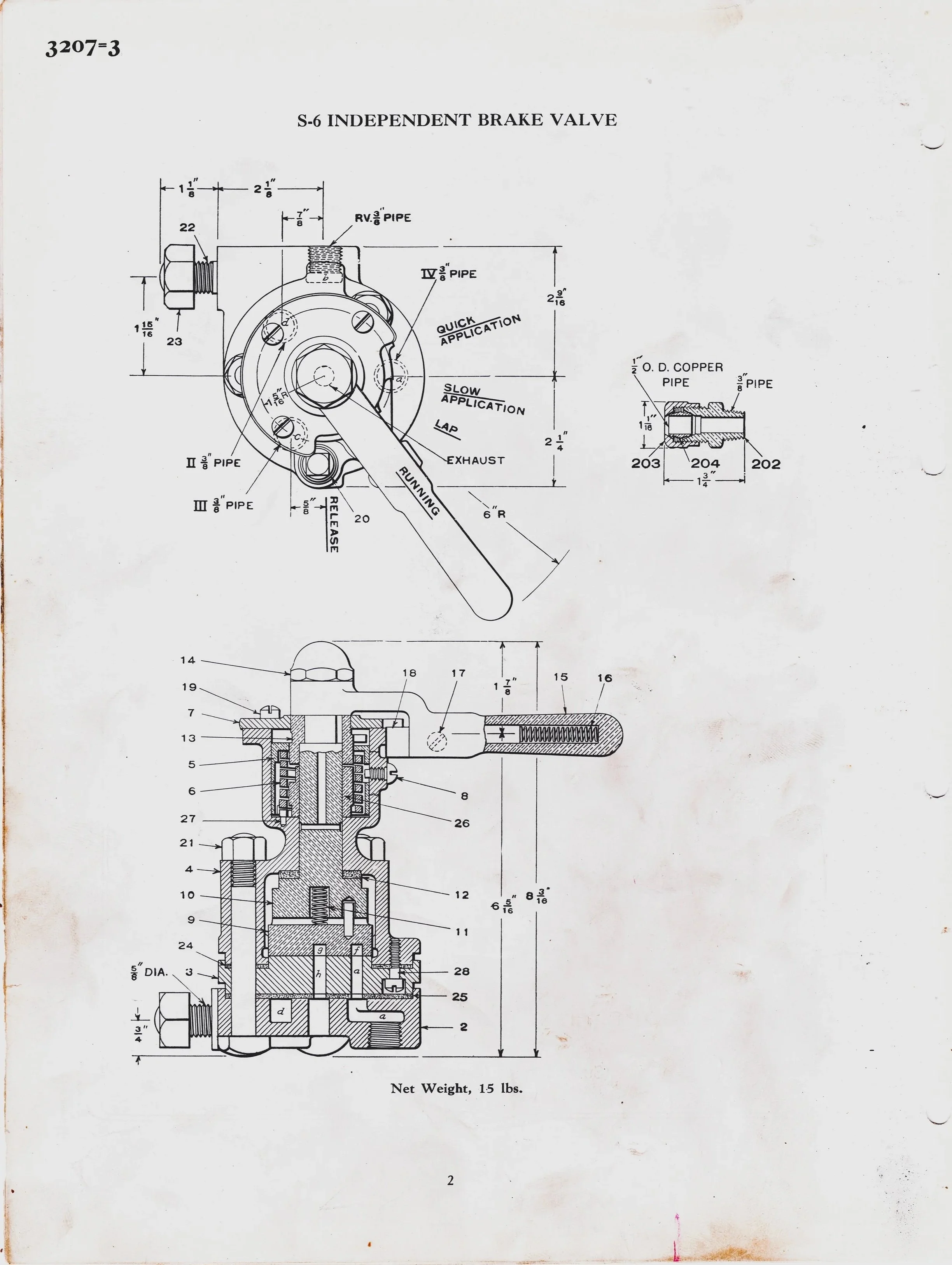

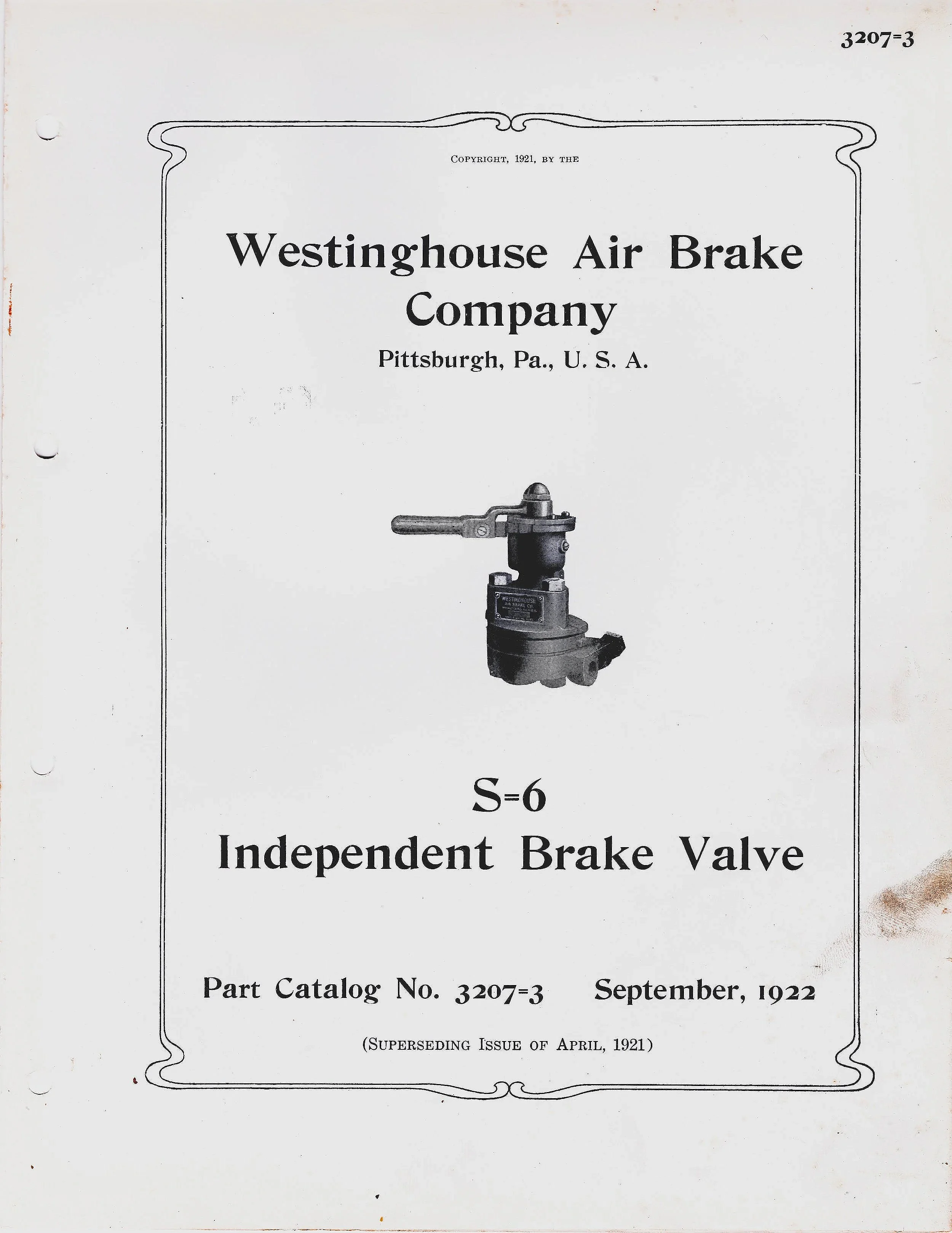

S=6 Independent Brake Valve

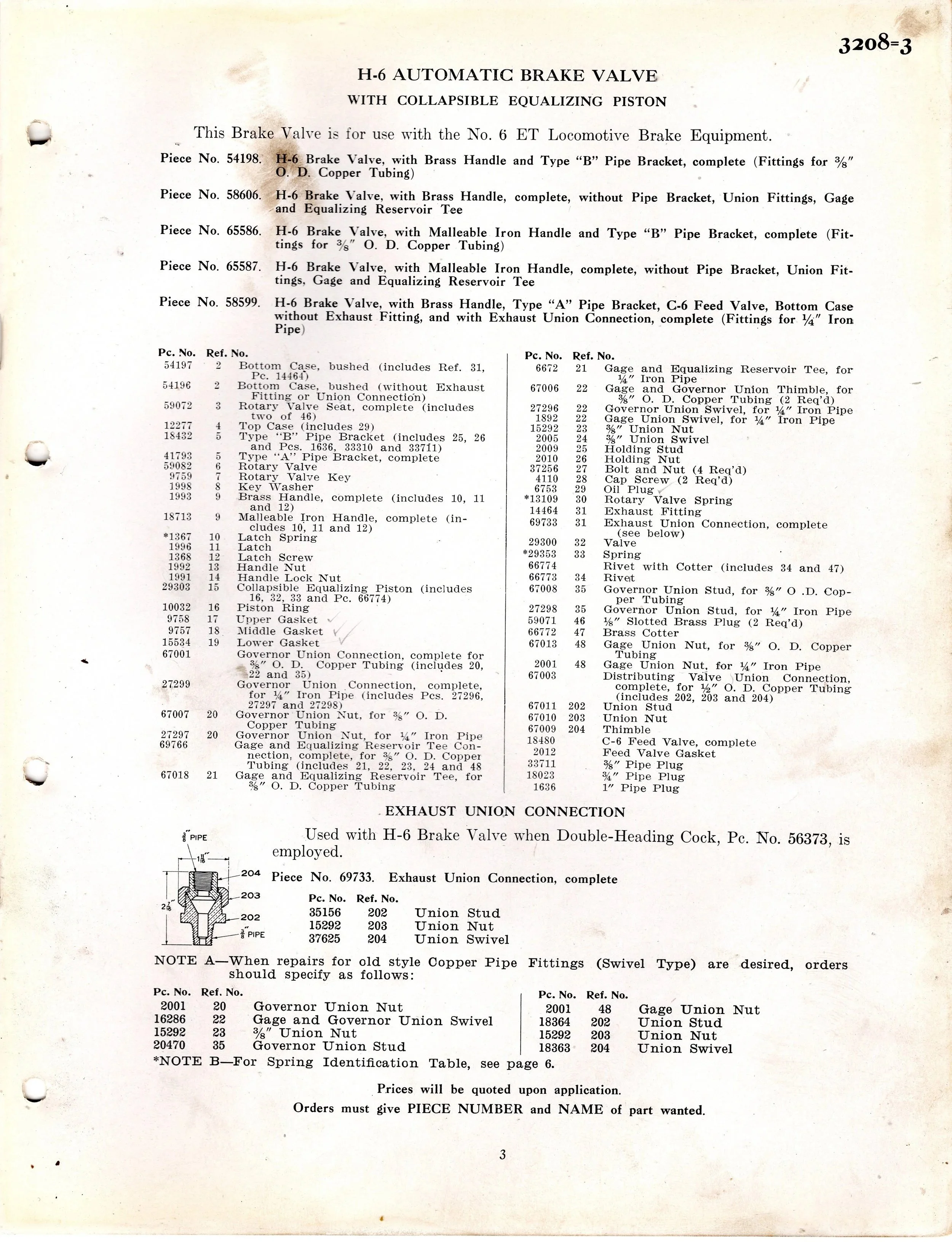

H-6 Automatic Brake Valve

Page Seven is Blank.

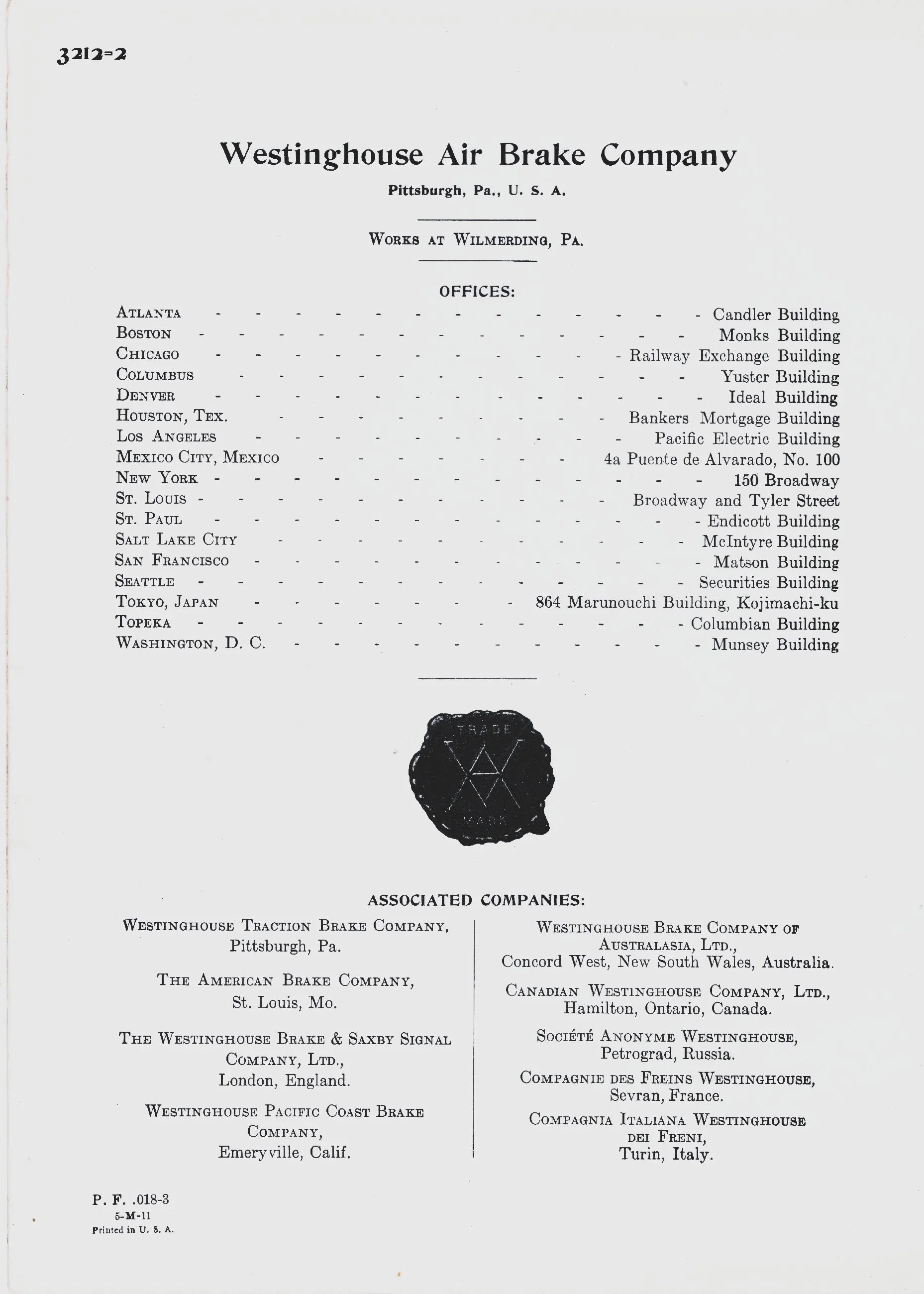

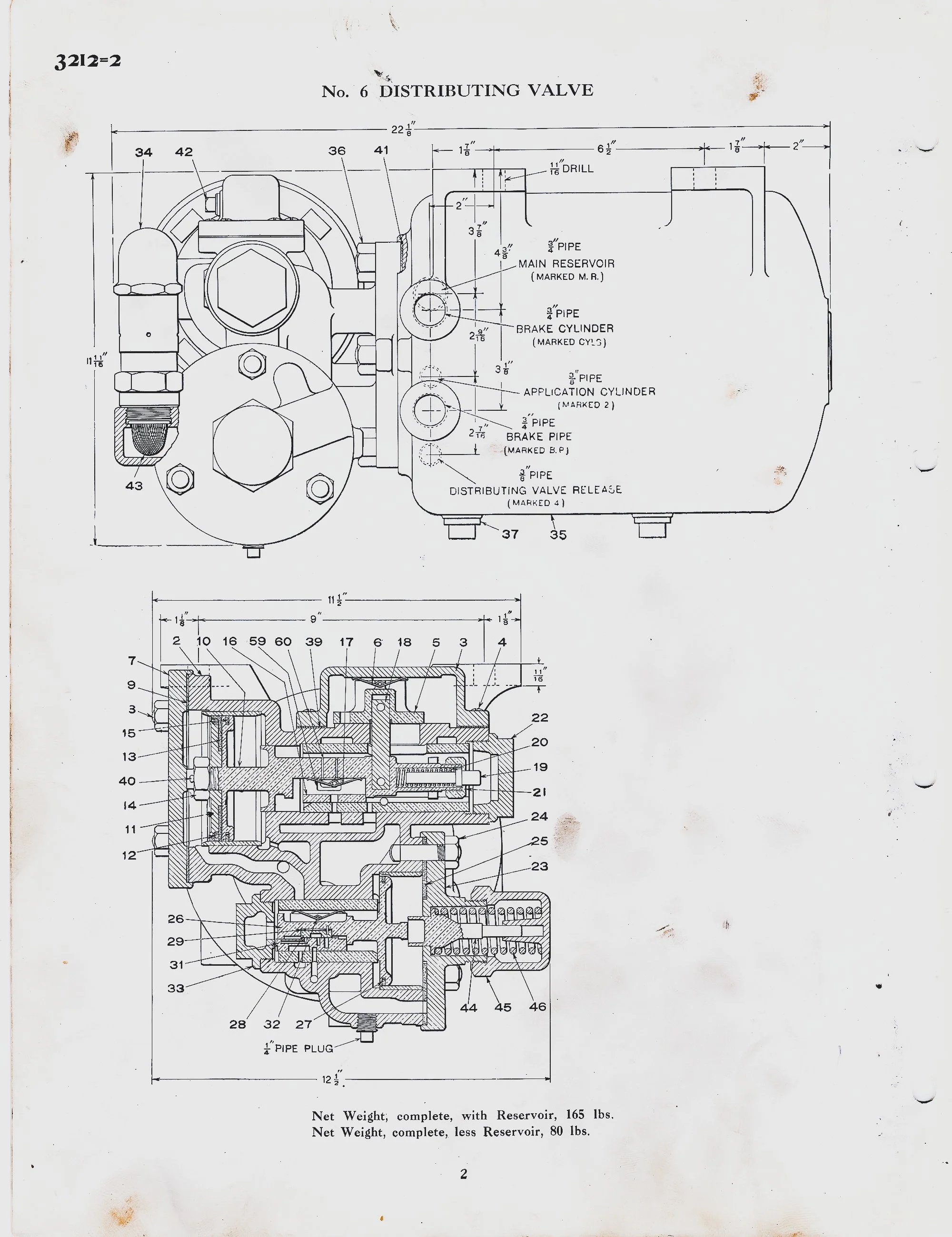

Westinghouse No. 6 Distributing Valve
